Sample Applications

Here are a few sample schematics of our most popular wiring diagrams we have put together for some of our clients....

Schematic for Sensing Bathroom Light + Cooker Hood

Schematic for CMSM Control Vent-Axia MVDC Apartment

Schematic for CMSM Control Vent-Axia MVHR for Apartment

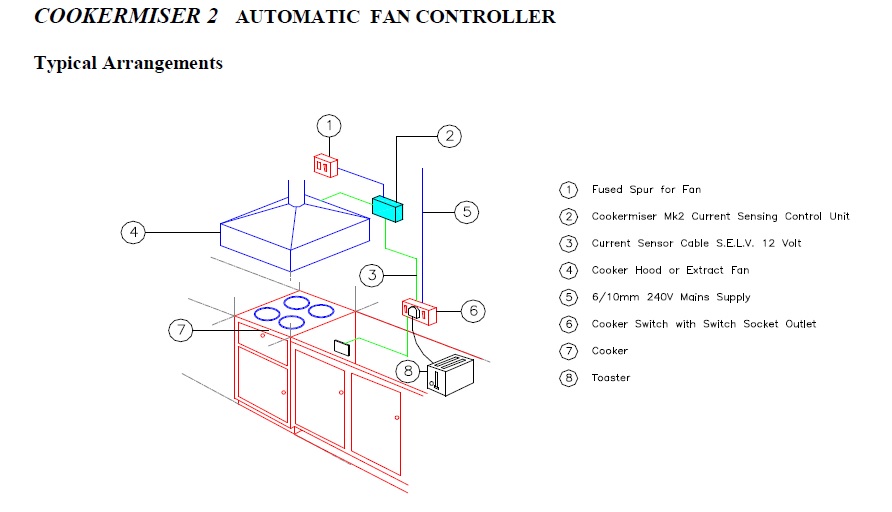

We have included a sample schematic showing the Ventmiser/Cookermiser unit wired for a typical cookerhood for use in a kitchen student accomodation scenario.

You can download the full schematic by clicking here

The next picture is how the unit should look once you have unscrewed the lid and taken it off....notice the load and time pots to the top right. These should be used to commission the Controller after installation.

Should you have any queries regarding the CMSM unit or the sensors we supply please contact us on 0115 922 2940 or email us at contact@westenergy.co.uk
